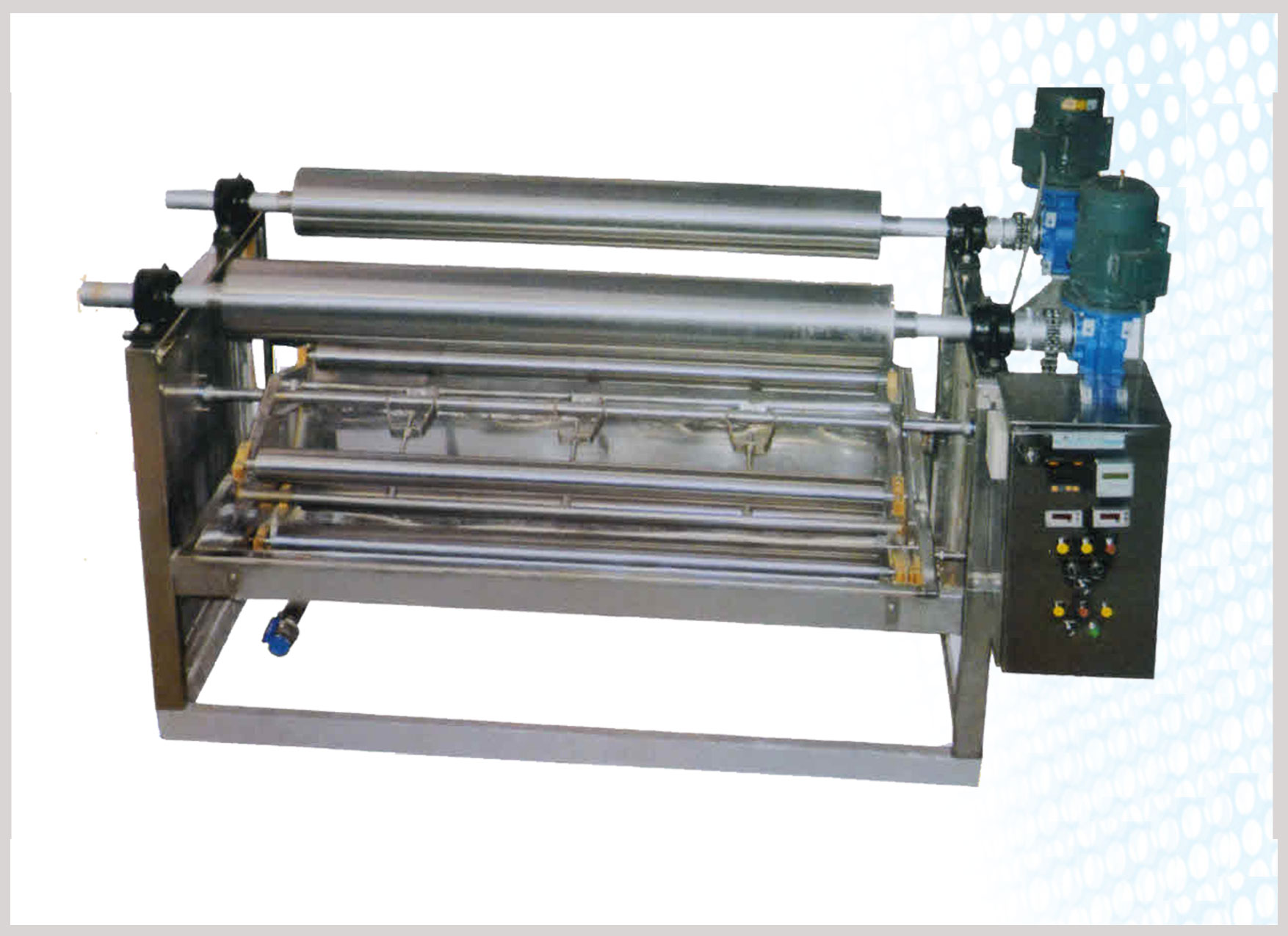

Fully Automatic Dyeing Jigger With S.S.Structure
Products
- . Semi Automatic Dyeing Jigger
- . Semi Automatic Jumbo Jigger machine
- . Heavy Duty Dyeing Jigger with S.S.Structure
- . Semi Automatic Jumbo Jigger for Bleaching
- . Jumbo Automatic Maxi Jigger machine
- . Super Jumbo Jigger JT-10
- . Winch Machine for scouring & Bleaching
- . Gutkha Mixing Machine
- . Fully Automatic Dyeing Jigger With S.S.Structure
Technical Specification
Speed & tension Control through drive
S.S Structure With M.S Base Frame
S.S claded Main Roll
Capacity : 225 Kg., 350 Kg., 500 Kg., 750Kg., 1000 Kg. (250 Gsm)
Roll Center: 25" ,31" ,36" ,42" ,46"
Available Width: 48" To 120" Roller Width
Individual Drive On each roller
Optional Accessories
Oli Heating
Auto R/F fabric Cycle Control on PLC
Auto Drain System
Temperature Controller With Steam valve
Circulation System With 2.0 H.P. Moter & Pump
| Roll Center | 31"C | 36"C | 42"C | 46"C |
| Capacity | 350 Kg. | 500 Kg. | 750 Kg. | 1000 Kg. |
| Batch Dia | 900 mm | 1100 mm | 1300 mm | 1500 mm |
| Available Width: 48" To 120" Roller Width | ||||
